1800mm Single-servo high-speed semi-automatic box nailing machine
1. 1800mm Single-servo high-speed semi-automatic box nailing machine description
Single servo high-speed semi-automatic box nailing machine is the special equipment for the last forming of corrugated carton. Through technical update, it has the advantages of high production efficiency, fast nailing speed, low labor intensity, simple operation, stable performance, reliable operation and low failure rate. Double servo high-speed semi-automatic box nailing machine is mainly used for single corrugated board forming nailing, in order to meet the requirements of various varieties, different batch production, to adapt to the needs of various domestic and export carton packaging products, is the replacement of manual nailing machine, is the latest in China, the most ideal carton semi-automatic equipment.
2. 1800mm Single-servo high-speed semi-automatic box nailing machine specification
1.The touch screen operation parameter command is simple and easy to understand, and requires no special training operators.
2.The nail head is made of special steel precision, and the parts are durable,which greatly increases the nailing speed and the life of the nail head.
3.The automatic paper feeder is specially prepared for the large wire tray of 20kg/roll. The wire feeding line is smooth and untangled, and the nail wire replacement time is greatly saved, and the work efficiency is improved.
3. 1800mm Single-servo high-speed semi-automatic box nailing machine advantages
| serial number | Name | Brand | Producing area | Note |
| 01 | Head servo motor | Yaskawa | Japan | 1set |
| 02 | Feed servo motor | Yaskawa | Japan | 1set |
| 03 | PIC,photoelectric switch,and proximity switch | Delta | Taiwan | 1pc |
| 04 | Contactor,circuit breaker | Siemens | Germany | |
| 05 | Intermediate relay | Schneider | The French | |
| 06 | Cylinders and pneumatic components | EASUN | China | |
| 07 | Solenoid valve | AirTAC | Taiwan | 1pc |
| 08 | Touch screen | Weinview | Taiwan | 1 |
| 09 | The whole handpiece | | 中国China | 1 |
| 10 | The blade Bottom die | | 德国合金钢Germany | 1 |
| 11 | Zero return switch | omron | 日本Japan | |
| 12 | Photoelectric switch | Omron | 日本Japan | |
| 13 | Gear Reducer Motor | GPG | 台湾Taiwan | 3 |
| 14 | Worm gear reduc | People | 中国China | 2 |
| 15 | The brake motor | Autoboy | 中国China | 1 |
| 16 | bearing | (C&U) | 中国China | |
4. 1800mm Single-servo high-speed semi-automatic box nailing machine Component function
1. Japanese yaskawa servo drive control system willon touch screen.
2. Can staple single, double. Strengthen the one-time order, can be suitable for different customers to order a kind of requirements.
3. Quick size change in one minute, easy to operate without experience.
4. The paper feeding part counts automatically and sends out bundling after bunching.
5. Man-machine interface control, convenient operation.

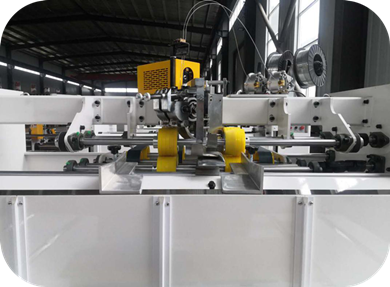

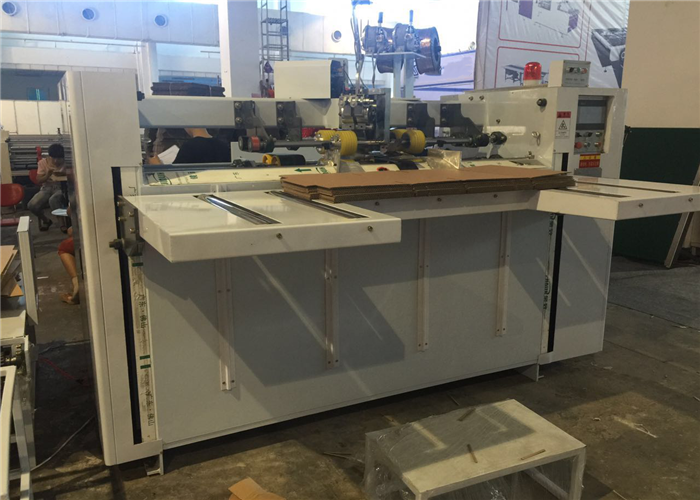

5. 1800mm Single-servo high-speed semi-automatic box nailing machine pictures
6. 1800mm Single-servo high-speed semi-automatic box nailing machine Machine Technical Parameter
| Models and Parameters | SDX-2000 |
| Max Paper Size | 3800mm |
| Min Paper Size | 740mm |
| Max Carton Long | 1140mm |
| Min Carton Long | 250mm |
| Max Paper Size | 760mm |
| Min Paper Size | 150mm |
| Max Paper Height Size | 3000mm |
| Min Paper Height Size | 250mm |
| Max Shake Cover Size | 560mm |
| Min Shake Cover Size | 50mm |
| Max Height | 2000mm |
| Min Height | 100mm |
| Max Width of The Tongue | 40mm |
| Nail Pitch | 30-120mm |
| Nail Number | 2-99 |
| Nailing Speed | 600 |
| Machine Weight | 2 |
| Power | 7KW |
