SGS 3900mm Toilet Tissue Paper Making Machine

  • 1
  • 2
  • 3

Brand Name : HUATAO

Model Number : HT021

Certification : SGS,ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : Within 30 Days

Packaging Details : exported package

Product name : Toilet Tissue Paper Machine

per weight : 14Pa-35g/m2

Designed speed : 250m/min

Working speed : 140-400m/min

Nominal capacity : 10-1T/D

Payment Term : L/C,T/T

Contact Now



3900mm Width Tissue Paper Production Line



1. Tissue Paper Production Line Quick Details
Condition: New
Type: Toilet tissue paper making machine
Computerized: Yes
Place of Origin: Hebei, China
Brand Name: Huatao
Model Number:1575mm
Voltage: 380V
Power(W): 15KW
Dimension(L*W*H): Configuration
Weight: 2000KG-5800KG
Certification: CE/ISO9001
Product name: Toilet Tissue Paper Machine
Material: Carbon steel
Raw material: Waste Paper/Wood pulp
Trimmed width(mm): 1575-3600
Production capacity(t/d): 5-50
Output paper: Toilet Paper Tissue Paper Napkin Paper
Application: Paper Industry
Color: Optional Color
Machine type: Recycled Paper Pulp
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: One Year



Item / PM type 1575 1880 2400 2900 3500 3900
Design Speed (m/min) 250 250 250 250 250 250
Working Speed (m/min) 160-230 160-230 160-230 160-230 160-230 160-230
GSM Range (g/m2) 13-30 13-30 13-30 13-30 13-30 13-30
Capacity 4-6 5-8 7-10 8-12 10-15 11-18
Diameter of Dryer (mm) Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000
Motor (kw) 37-45 45-55 55-75 75-90 90-110 90-110
Gauge(mm) 2400 2800 3400 3900 4500 4800


2. Tissue Paper Production Line Application

Mainly for the production of manufacture paper with pulp 14-35 g / ㎡,  toilet paper. Paper napkin base paper

3. Tissue Paper Production Line Crafts Parameters

Pulp: wood pulp plate,  waste paper etc as raw material

  • Feeding pulp concentration : 0.3-0.9‰
  • Beating degrees : 30-38°SR
  • Paper sheet dryness

come out from wire case : 18-20％
Before go through MG cylinder : 36-40％
Come out from MG cylinder : 90-94％
Finish tissue : 90-94％

  • Lateral shrinkage : 8-10％
  • Day running hours: 22 hours/d
  • Papermaking rate : 94％
  • Yield : 95％
  • Touch roll line pressure: 60 KN/m


4. Tissue Paper Production Line Supporting parameter

AC voltage  : 380V；50Hz

  • Control voltage : 220/24V
  • Water pressure: 0.3Mpa;

Working pressure: 0.2Mpa

  • Compressed air pressure: 0.8Mpa;

Working pressure: 0.5Mpa

  • Steam pressure: 0.6Mpa;

Working pressure:0.3Mpa

  • Vacuum suction tank:  20-40Kpa
  • Water requirement: pure color, remove impurities,  PH value 6.8


5. Tissue Paper Production Line Technical Parameters

Paper weight:  18-30g/m2

  • Net width of paper :3900mm
  • Designed speed : 230m/min
  • Working speed: 150-200m/min
  • Nominal capacity : 10T/D
  • Track gauge : 4600mm
  • Wrinkling rate : 15-30℅
  • Drive way: Y-type AC motor drive division, section drive
  • Control way:frequency conversion
  • Power:

MG cylinder motor: 95kw
Roll-cylinder motor: 7.5kw
Total:102.5Kw


6. Tissue Paper Production Line Features

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

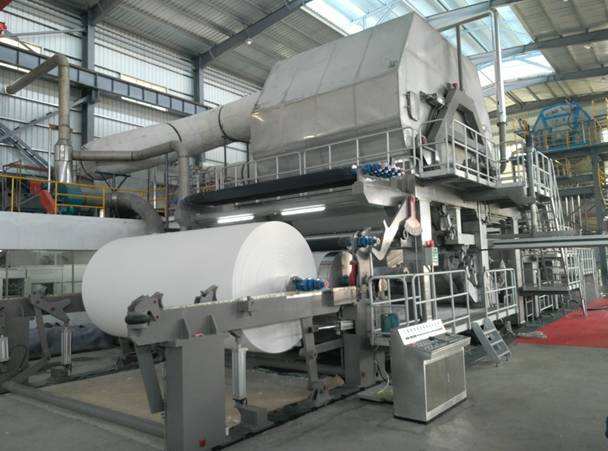

SGS 3900mm Toilet Tissue Paper Making Machine

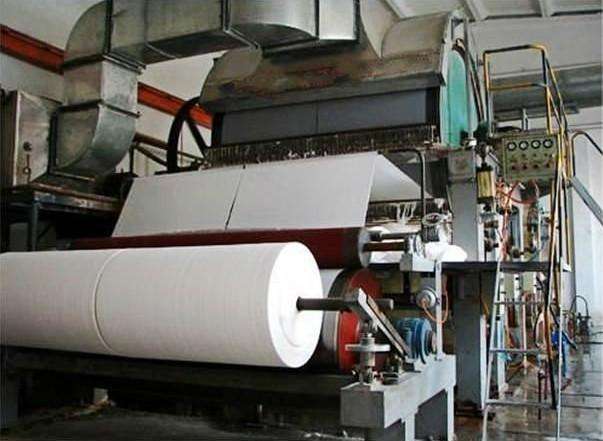

SGS 3900mm Toilet Tissue Paper Making Machine
